Linneo Umbilical CAN harness

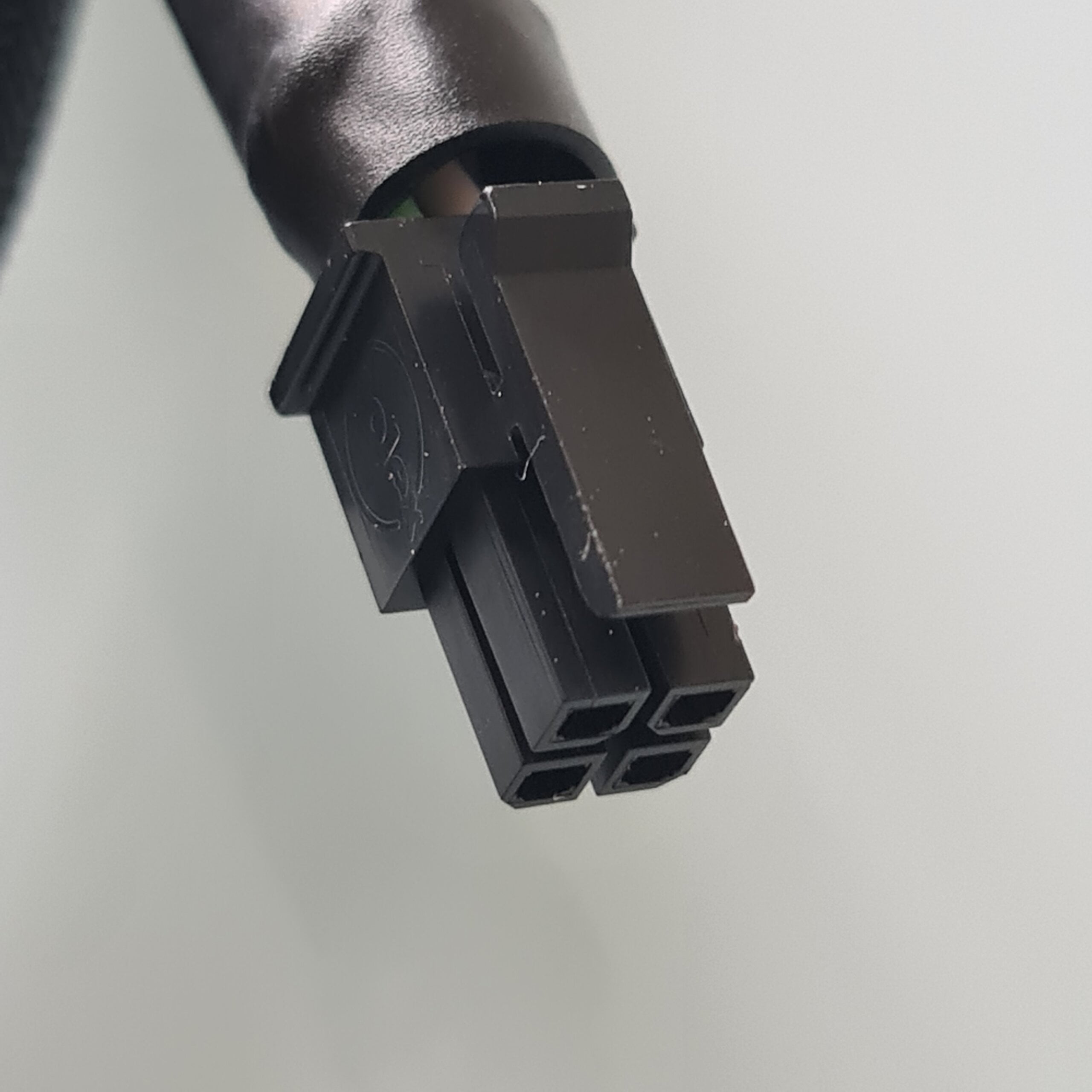

Linneo Umbilical CAN harnessPre-made FEP CAN harness consisting out of twisted CAN-H & CAN-L wires plus two wires for 24V supply made from IGUS wire covered in protective sleeve for umbilical use. A second FEP wire based harness will connect the umbilical harness to the controller board under the deck. The interconnection is done by a CNLinko connector pair.Variants:Molex connector (for BTT EBB36 & EBB42 (not V1.1 with white Molex connector, only V1.0 with black Molex connector)), Huvud (needs re-pinning of the Molex connector in a different order, get the Linneo pin tool if you need a Molex un-pin tool or let me know, Linneo can produce the Huvud variant on demand)XT30 connector (for Fysetc SB2040, BTT EBB SB2209 and EBB SB2240)For maximum flexibility the harness has on the controller board side two fork connectors for 24V & GND and two ferrule connectors for CAN-H & CAN-L.Comes fasteners for the CNLinko connector. A mount for the harness can be printed using this file: umbilical_mount.Pin out:Green: CAN HYellow: CAN LBlack/red: 24VBlack/black: GNDLenghth of the harness: ~0.8m (fits for Voron 250mm up to 350mm build size)
