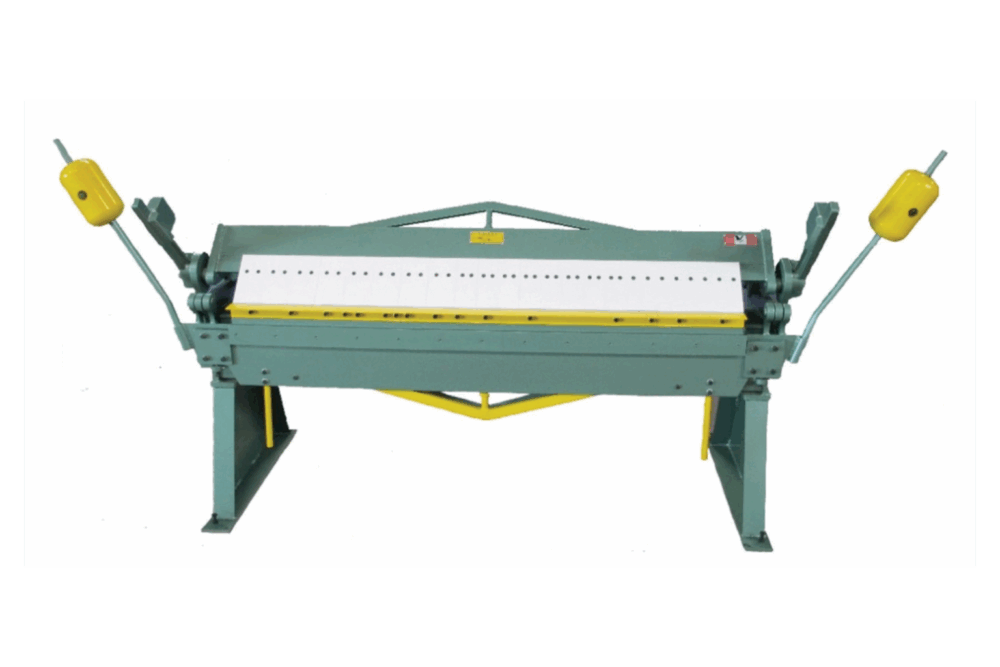

TK 616 Universal Brake

Production Description Specifications: Capacity with lower tooling flanges: 72” x 16 gauge (1.6mm) Capacity without lower tooling flanges, 72” x 20 gauge (1.0mm) Lift of beam: 1.5″” (38.1mm) Front to back ram adjustment: 1/2″ (13mm) A minimum reverse bend of 5/8″ (16mm) Min flange width: 1″ (25mm) Finger widths: 1″, 3″, and 4″ (50.8, 76.2, and 101.6mm) Lower segment tooling widths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm) Bending beam tooling (segmented) lengths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm) Maximum transverse bend in center of machine: 2″ (50.8mm) Maximum transverse bend at end of machine: 3″ (76.2) Footprint with counter weights: 95x38x54in (2413x965x1346x1372mm) A shipping weight of 1850 lbs. (839kg) – HERE’S THE BEEF!
