Cafelat Mesh Filter Replacement Part

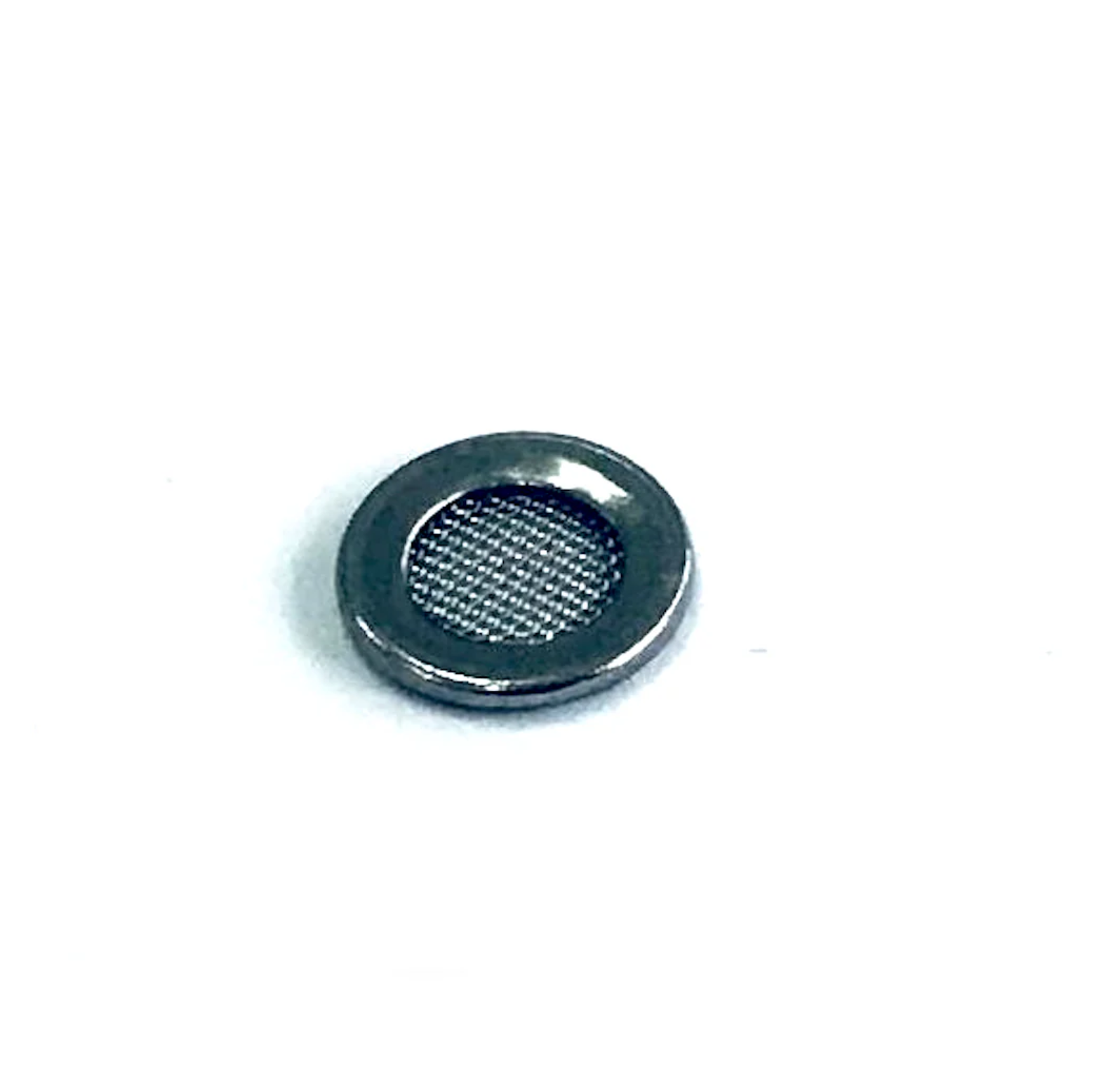

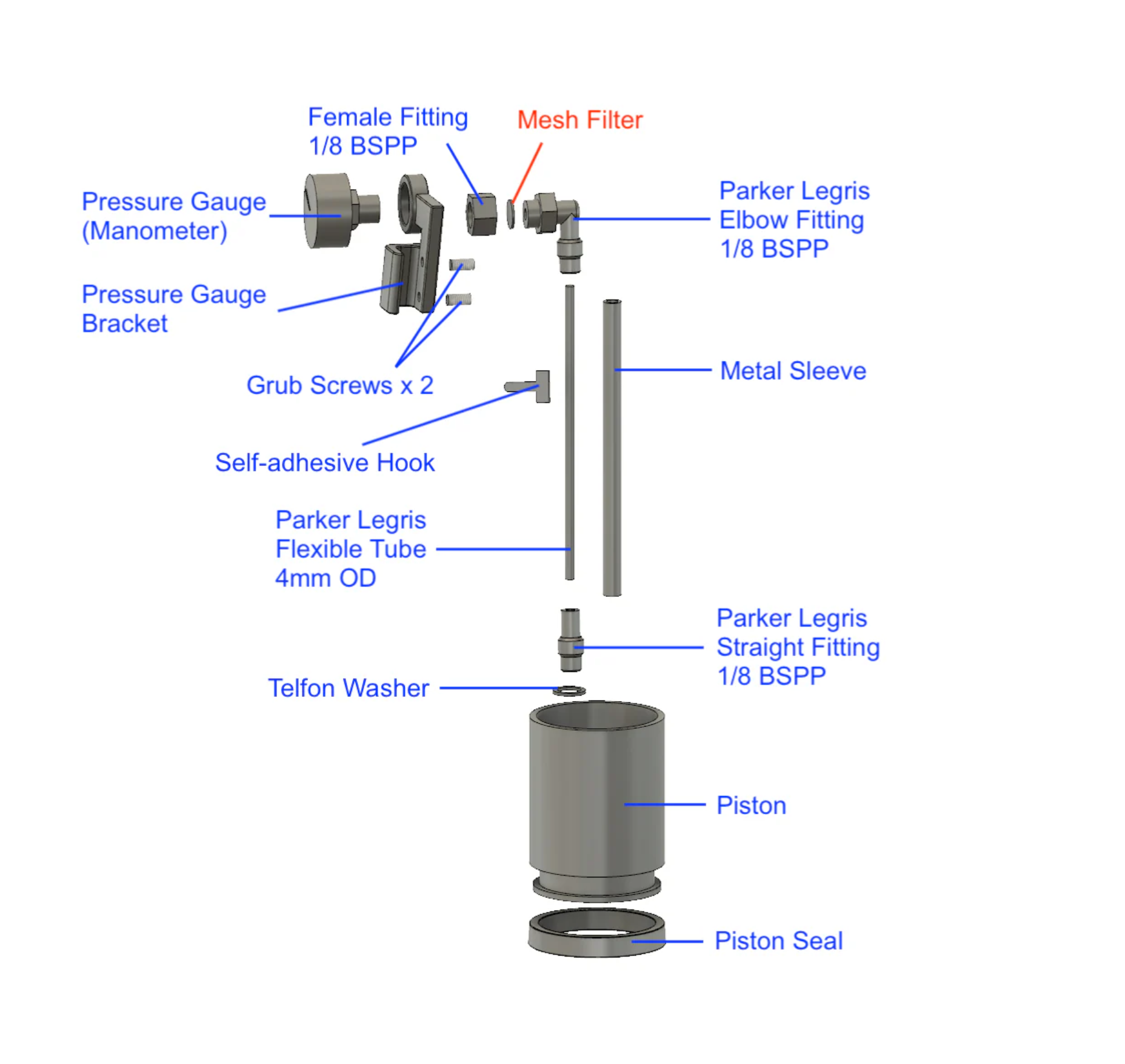

Overview This is the small stainless mesh filter that protects the pressure gauge on the Cafelat Robot Barista. It sits in line between the two Parker Legris push-fit fittings, one on the piston, one on the gauge, and acts as a final barrier against any espresso or coffee fines that try to migrate up the flexible tube. Without it, the gauge slowly clogs and stops giving accurate pressure readings. When you actually need this The mesh filter is small and easy to misplace during disassembly, so the most common reason to order one is simply that the original got lost when the gauge system was last opened up. The other reason is a clogged or damaged filter, usually from coffee debris built up over time. If your gauge has started reading erratically or sluggishly, checking and cleaning or replacing the mesh filter is the cheapest fix to try before suspecting the gauge itself. Specifications Material Stainless steel Finish Brushed Diameter approx. 8 mm Weight approx. 0.5 g Position in system Between the piston-side and gauge-side Parker Legris fittings Compatibility Cafelat Robot Barista (pressure gauge version) What’s in the box 1 × Stainless steel mesh filter
